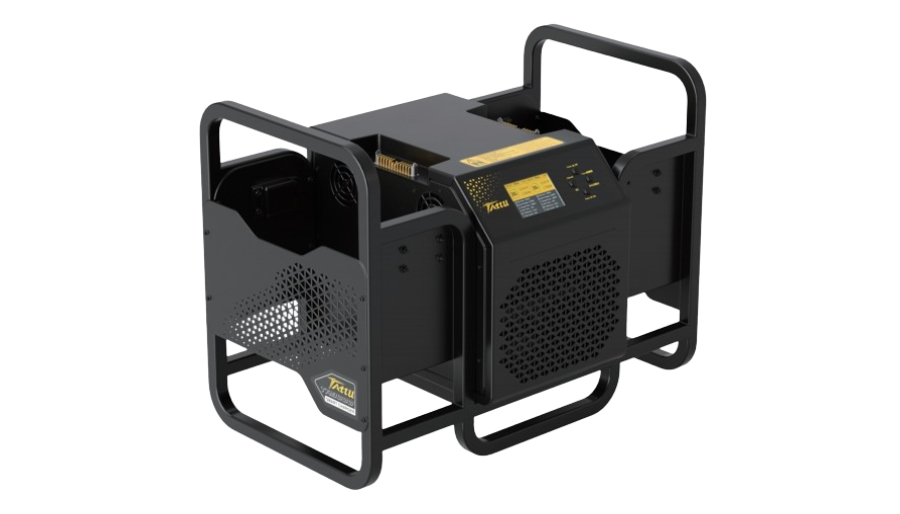

TA9000 9000W Dual Channel 12-22S Drone Battery Smart Charger

TA9000 is a dual-channel hard-plug structure smart charger that supports multiple input methods and can automatically read Tattu smart battery information without manual settings. During the charging process, the charging current is intelligently adjusted according to the real-time status of the battery to ensure safe charging. This product also has comprehensive protection functions such as overvoltage, voltage limiting, overheating,current limiting, short circuit and reverse connection, and adopts air-cooling heat dissipation technology to meet the needs of efficient charging during busy operations.

Solution Details

TA9000 is a dual-channel intelligent charger that supports multiple input methods, with safety protection functions such as over-voltage, voltage limit, overheat, current limit, short-circuit and reverse connection protection etc. Once the Tattu intelligent drone battery is successfully inserted into the charger for communication, the charger can automatically read the battery information and enter into intelligent charging without any operation. During the charging process, the charger will adjust the charging current according to the real-time status of the battery to ensure charging safety. Customized service is available.

TA9000 12/14/18/20/22S Dual Lipo Drone Battery Charger Features

●?120A Fast Charging

●?Plug and Charge

●?Real Time Monitoring

●?Efficient Heat Dissipation

TA9000 12/14/18/20/22S Dual Lipo Drone Battery Charger Parameters

Input Voltage	AC 100-240V 50/60Hz	Input Current	AC<50A
Output Voltage	35-90V	Battery Types	LiPo/LiHV,12-22S
Charge Power	MAX 9000W	Charge Current	MAX 120A
Working Temperature	0-40°C	Storage Temperature	-20~60℃
Size	583412435mm	Weight	About 23kg
